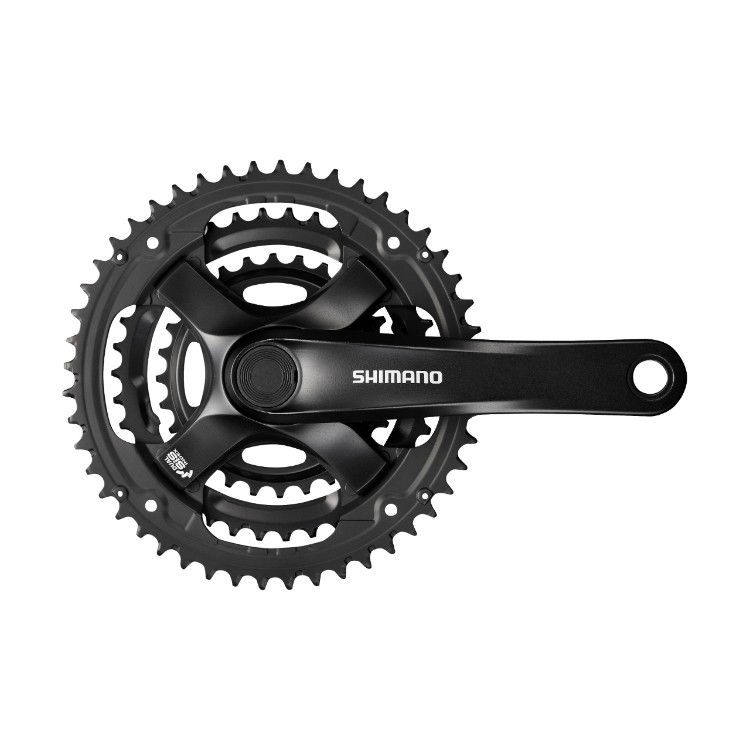

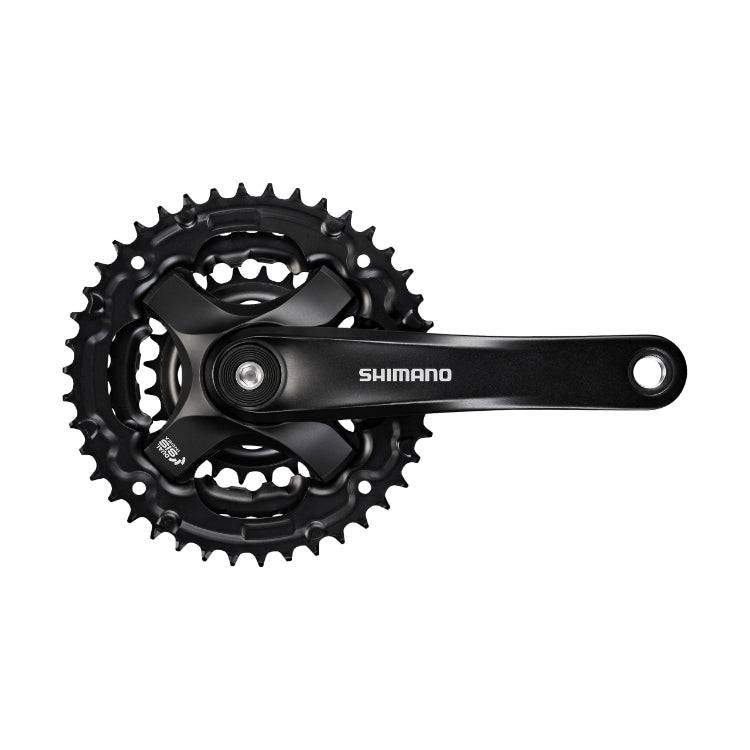

SHIMANO FC-TY501 TOURNEY TY MTB Crankset 170 mm Q-Factor 3x8/7/6-speed Black with Chain Guard
Size:48-38-28T - 170mm with Chain Guard
Pickup available at #720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
Usually ready in 24 hours
SHIMANO FC-TY501 TOURNEY TY MTB Crankset 170 mm Q-Factor 3x8/7/6-speed Black with Chain Guard
48-38-28T - 170mm with Chain Guard
#720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
Pickup available, usually ready in 24 hours
#720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
560038 Bangalore KA
India
SHIMANO FC-TY501 TOURNEY TY - MTB Crankset - 170 mm Q-Factor - 3x8/7/6-speed
Compatible with a 3x8, 3x7, and 3x6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.
FEATURES
Light and reliable shifting
Precision indexed shifting
DUAL SIS
Versatile performance
Wide compatibility with multiple components
8/7/6-speed compatible
3 crank length specification available
Quick and precise assembly
Precise chain line control
PRODUCT SPECIFICATIONS
| MODEL NO | FC-TY501 |
|---|---|
| SERIES | TOURNEY |
| Color | Black | Silver |
| Remarks | * Bottom bracket spec. for chain line 50 mm |
| Rear speeds | 8/7/6 |
|---|---|
| Compatible chain | HG 8/7/6-speed |
| Chain line (mm) | 47.5/47.5 + t/50 |
| O.L.D.|Thru (mm) | 142 |
| O.L.D.|QR/Nut (mm) | 135 |
| P.C.D. (mm) | Riveted |
| Spider/gear arms | 4 |
| Chainring combination | 42-34-24T, 48-38-28T |
| Q-factor (mm) | 185.5 |
| Crank arm length (mm)|165 | ✔ |
| Crank arm length (mm)|170 | ✔ |
| Crank arm length (mm)|175 | ✔ |
| Optional chain guard|With chain guard | X (integrated type) |
| With chain/bash guard | ✔ |
| Compatible bottom bracket type|Square | ✔ |
| Recommended bottom bracket|Threaded (normal) | BB-UN101, BB-UN300 |
| Recommended bottom bracket|Threaded (chain case) | BB-UN101-K, BB-UN300K |
| Axle length of BB-UN/ES (mm)|Threaded (normal) | D-NL, *D-EL |
| Axle length of BB-UN/ES (mm)|Threaded (chain case) | D-NL K |
| Threaded bottom bracket shell width (mm)|68 | ✔ |
| Threaded bottom bracket shell width (mm)|73 | ✔ |
| Chain case compatible | ✔ |
| Crank fixing screw included |
X (Option) |
