SHIMANO CRANK TOURNEY EFCTY501C88XLB 48-38-28
Pickup currently unavailable at #720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
SHIMANO CRANK TOURNEY EFCTY501C88XLB 48-38-28
#720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
Pickup currently unavailable
#720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
560038 Bangalore KA
India

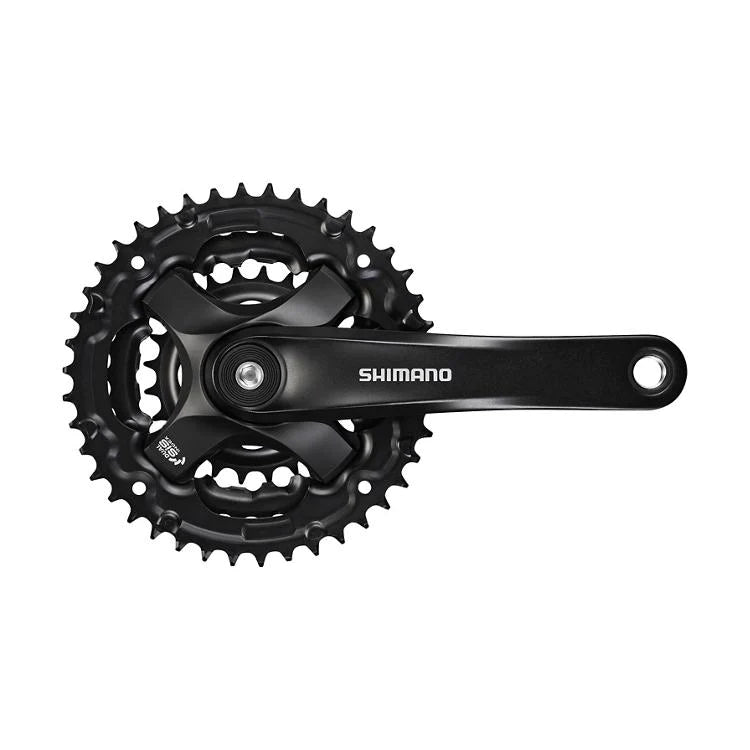

SHIMANO TOURNEY TY - MTB Crankset - 185.5 mm Q-Factor - 3x8/7/6-speed
Compatible with a 3x8, 3x7, and 3x6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.
- Light and reliable shifting
- Precision indexed shifting
- DUAL SIS
- Versatile performance
- Wide compatibility with multiple components
- 8/7/6-speed compatible
- 3 crank length specification available
- Quick and precise assembly
- Precise chain line control
PRODUCT SPECIFICATIONS
| MODEL NO | FC-TY501 |
|---|---|
| SERIES | TOURNEY |
| Color | Black |
| Remarks | * Bottom bracket spec. for chain line 50 mm |
| Axle length of BB-UN/ES (mm)_Threaded (chain case) | D-NL K |
|---|---|
| Axle length of BB-UN/ES (mm)_Threaded (normal) | D-NL, *D-EL |
| Chain case compatible | ✔ |
| Chain line (mm) | 47.5/47.5 + t/50 |
| Chainring combination | 48-38-28T | 42-34-24T |
| Compatible bottom bracket type_Square | ✔ |
| Compatible chain | HG/UG for 8/7/6-speed |
| Crank fixing bolt included | X (Option) |
| Crank arm length (mm)_165 | ✔ |
| Crank arm length (mm)_170 | ✔ |
| Crank arm length (mm)_175 | ✔ |
| Spider/Gear arms | 4 |

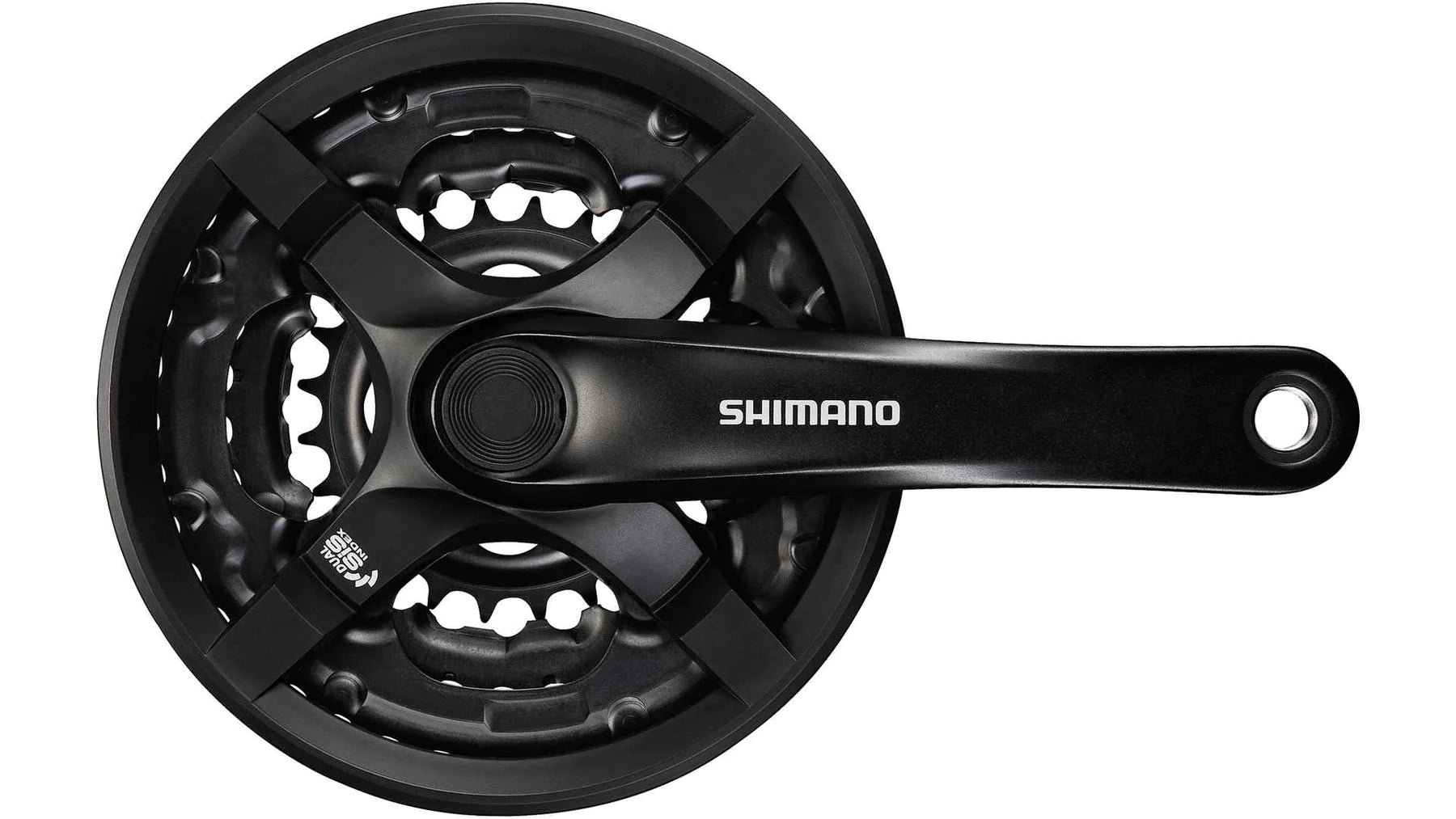

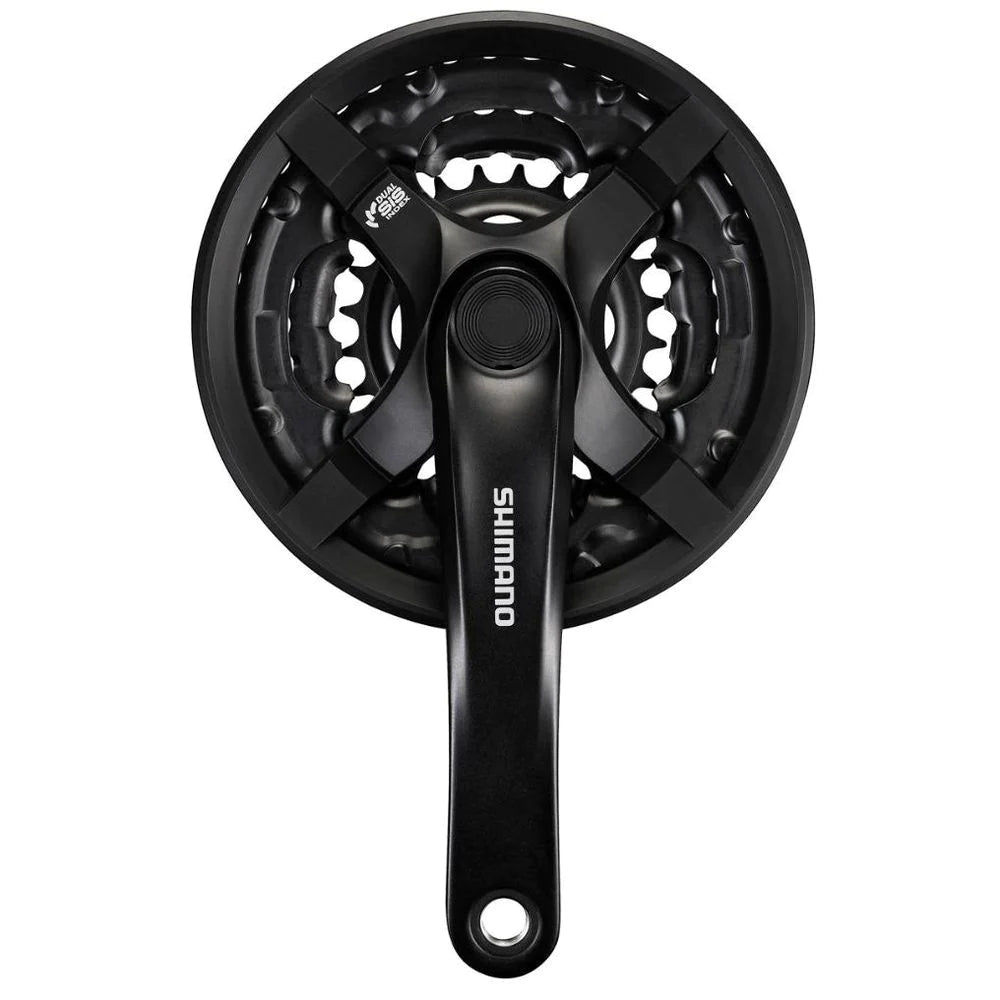

| Optional chain guard_With chain guard | X (integrated type) |
| Optional chain guard_Without chain/bash guard | ✔ |
| P.C.D. (mm) | Riveted |
| Rear speeds | 8/7/6 |
| Recommended bottom bracket_Threaded (chain case) | BB-UN101-K, BB-UN300K |
| Recommended bottom bracket_Threaded (normal) | BB-UN101, BB-UN300 |
| Threaded bottom bracket shell width (mm)_68 | ✔ |
| Threaded bottom bracket shell width (mm)_73 | ✔ |
| Crank arm fixing bolt_With | ✔ |
| Q-factor (mm) | 185.5 |
