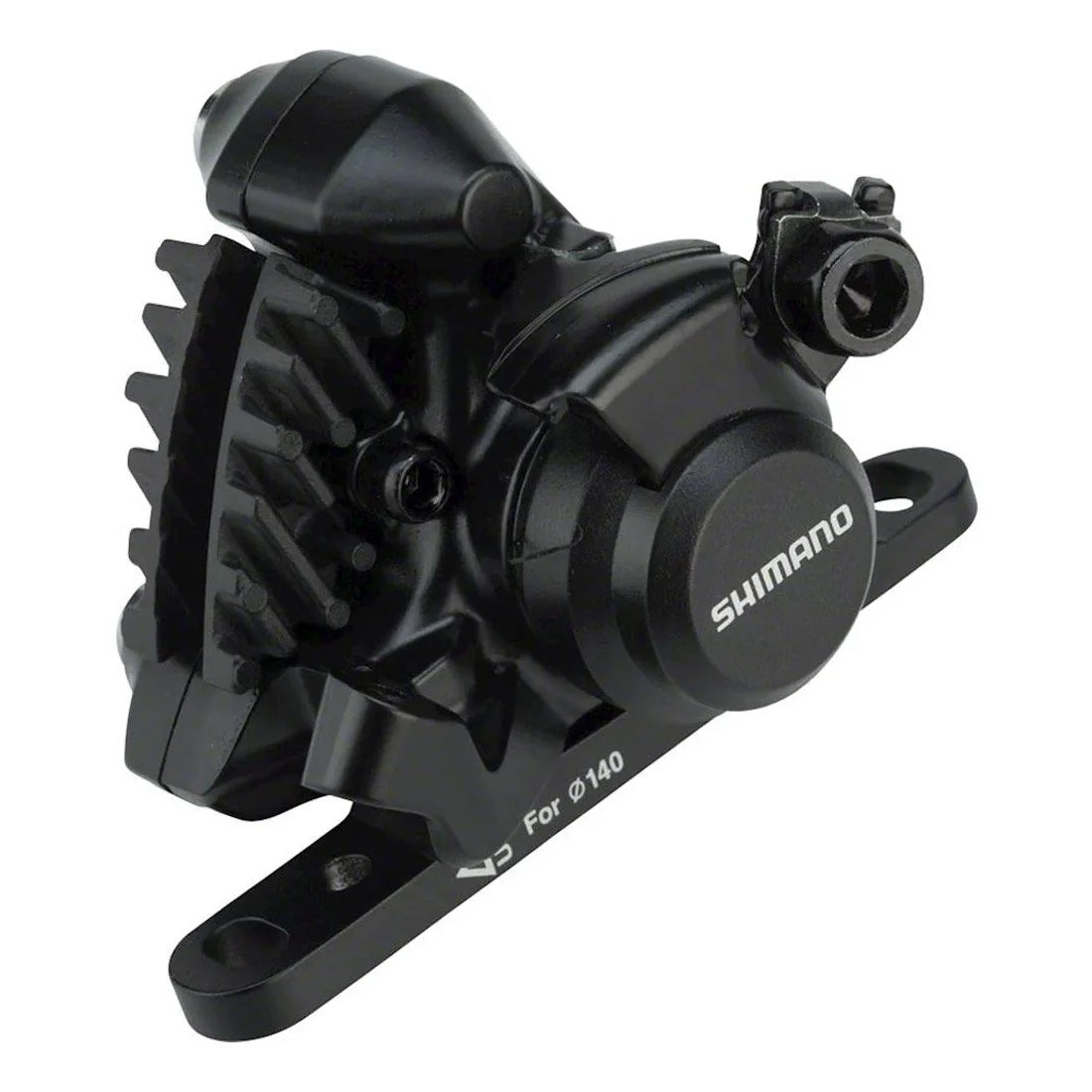

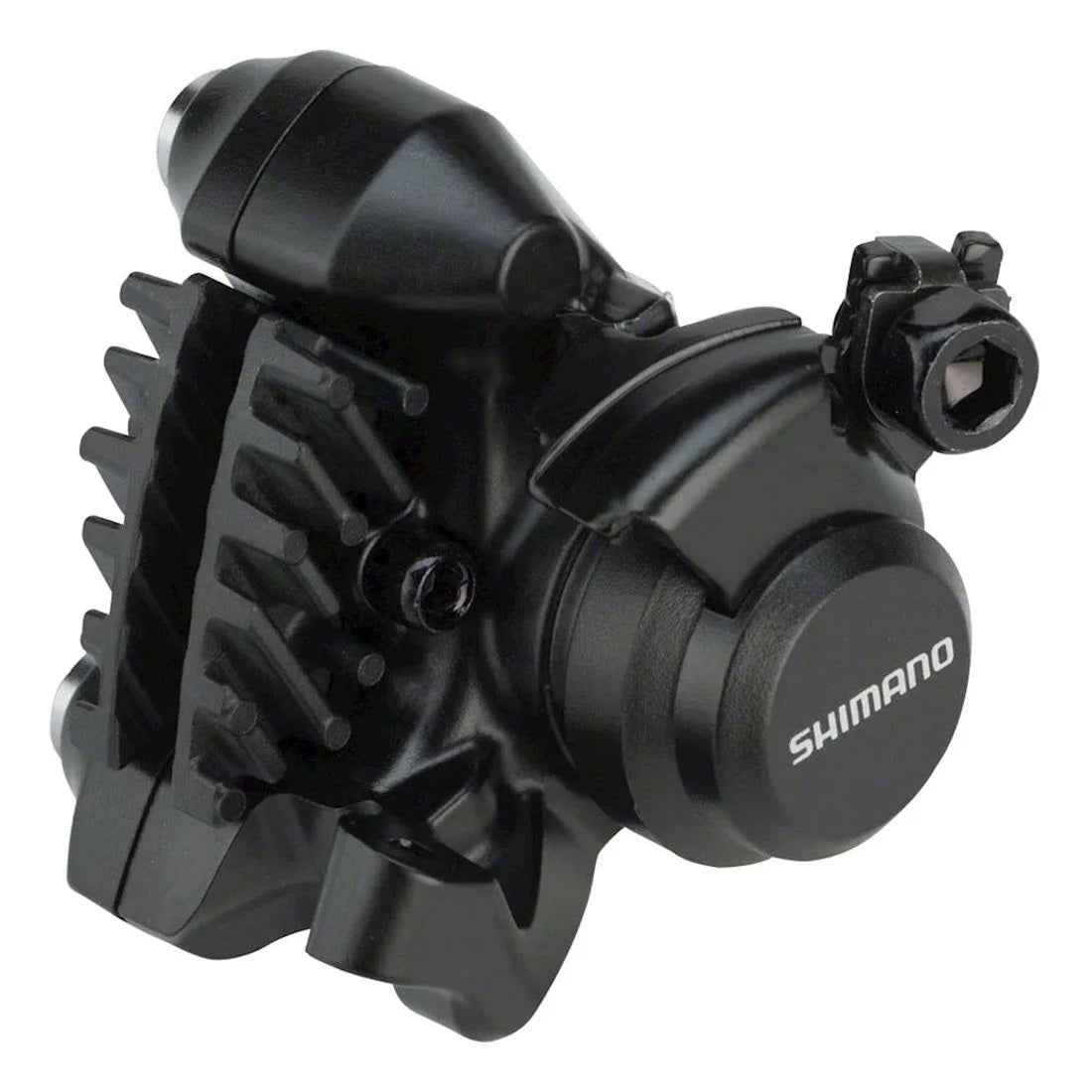

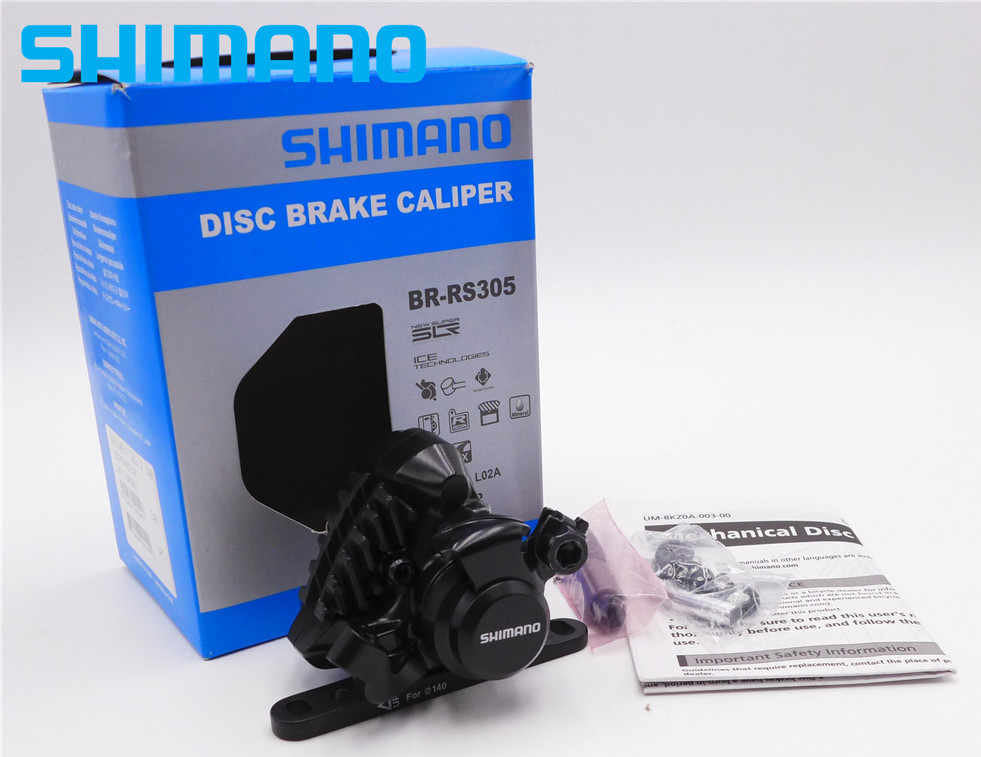

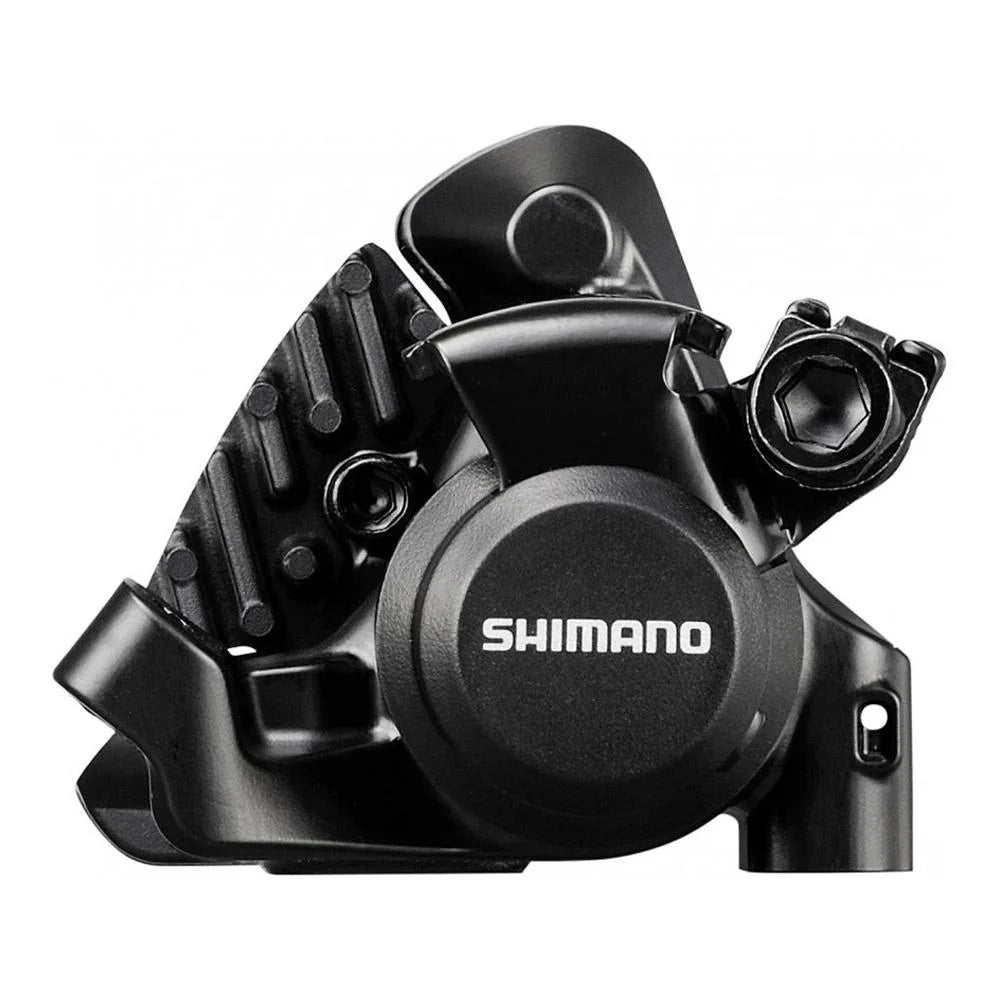

SHIMANO BRAKE CALLIPER BR-RS305-F (Front Caliper) - EBRRS305F4RF

SHIMANO - Flat Mount - Mechanical Disc Brake BR-RS305-F (Front Caliper)

The SHIMANO RS305 mechanical disc brake is easy to control as well as set up and maintain. It mounts via SHIMANO's Flat Mount interface.

Easy to control and clean appearance with stable brake performance for ordinary riders
Heat management system
ICE TECHNOLOGY pad with fin
Low profile disc caliper
SHIMANO Flat mount system
Easy setup and maintenance
Wide pad clearance
Easy tool access
SHIMANO Flat mount system
Both 140mm and 160mm rotors available with one bracket
SHIMANO Easy Flip-Flop bracket system.

Product Specifications - BR-RS305-F (Front)

MODEL NO BR-RS305-F
SERIES SHIMANO
Color Black
Remarks SHIMANO logo
Compatibility NEW SUPER SLR
Brake type Mechanical disc brake
Caliper fixing bolt_Anti loosen method Bolt fix pin/snap ring
Caliper fixing bolt_Tool size 4 mm
Mount type Flat mount
Pad_Option L03A Resin
Pad_Standard K03S Resin
Pad mount Pad axle
Piston 1
Recommended disc brake rotor SM-RT54/RT56 (160 mm), SM-RT70 (140 mm/160 mm)
ICE TECHNOLOGIES pad compatible caliper ✔
Pad_Option 1 L03A Resin
Pad_Standard 1 K03S Resin
