Shimano GRX

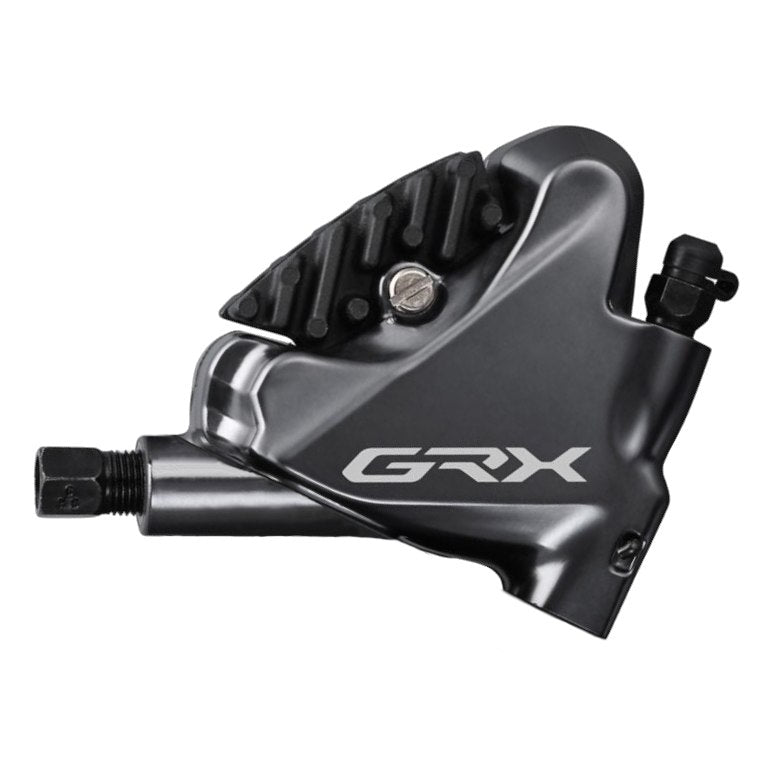

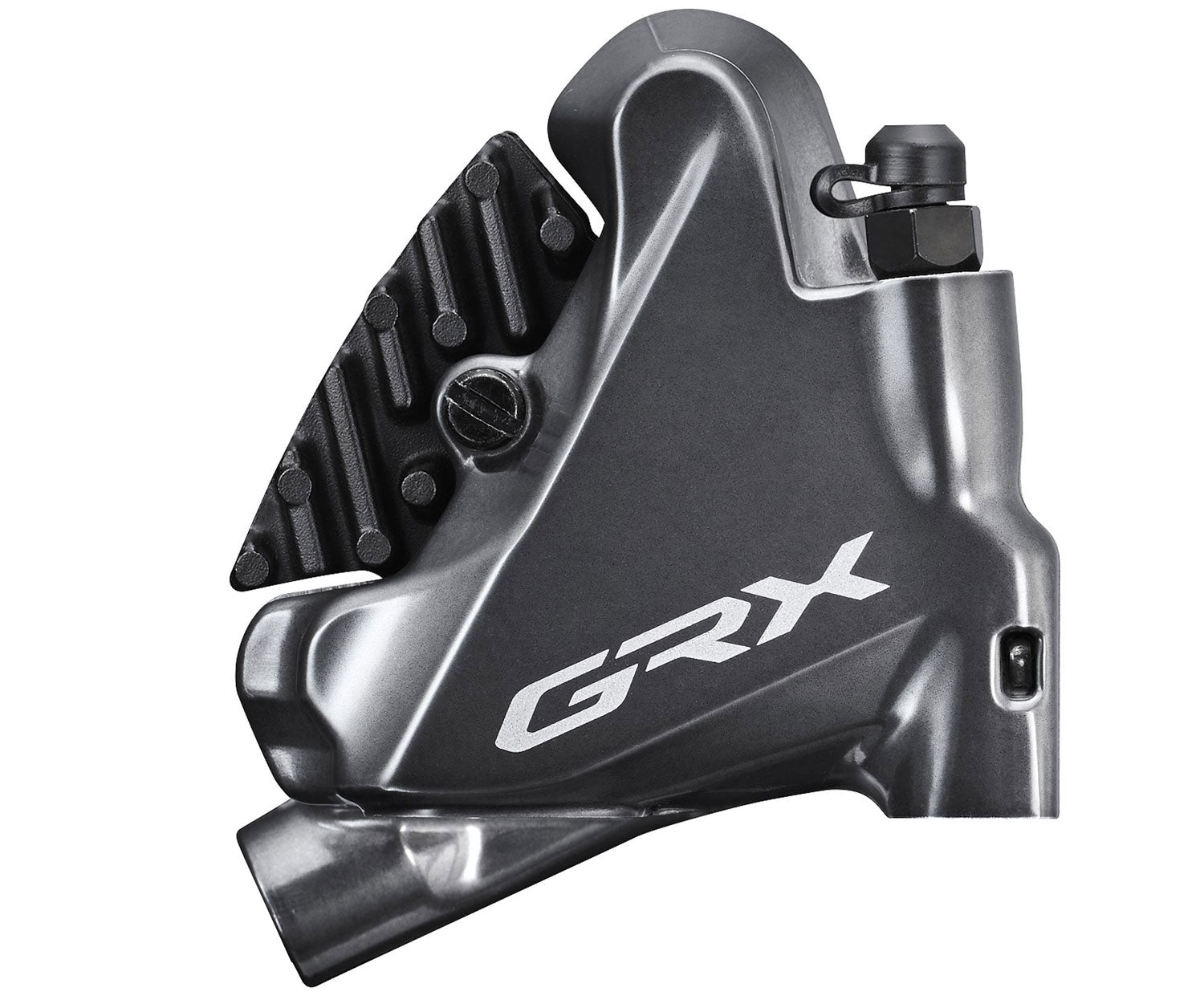

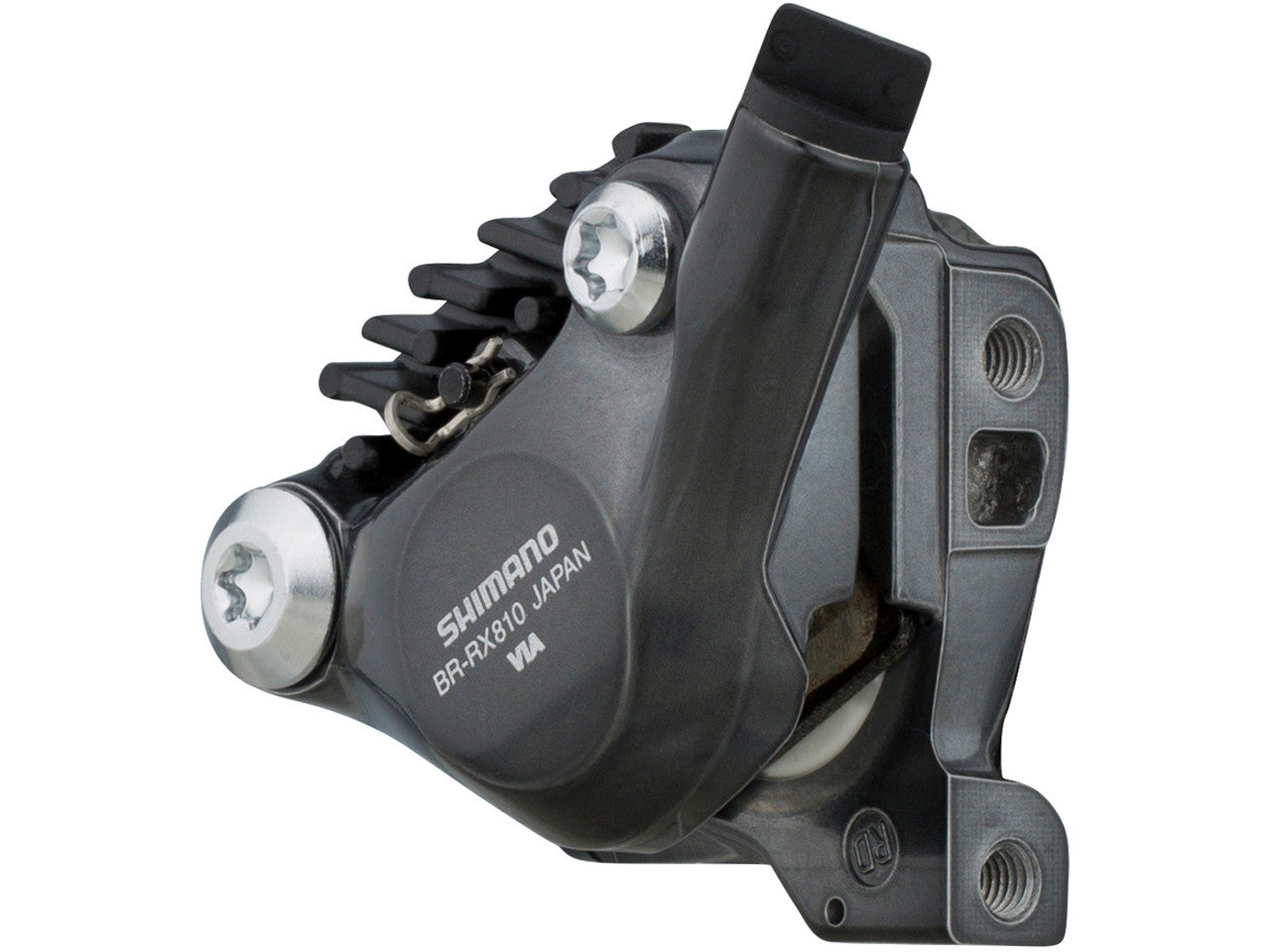

SHIMANO BRAKE CALIPER BR RX-810 REAR IBRRX810RDRF
Pickup currently unavailable at #720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
SHIMANO BRAKE CALIPER BR RX-810 REAR IBRRX810RDRF
#720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
Pickup currently unavailable
#720,9th cross, 10th A Main Rd, 2nd Stage, Indiranagar,
560038 Bangalore KA
India
SHIMANO ULTEGRA - Flat Mount - Hydraulic Disc Brake - Rear Caliper
With a low-profile Flat Mount design, the SHIMANO ULTEGRA R8000 series hydraulic disc brakes provide greater control in all conditions without interrupting the aero lines of road bikes.
- Better control in all conditions
- Hydraulic disc brake provides the next stage of control
- Sleek integration into a road bike’s aero profile
- Designed to integrate seamlessly with a road bike’s profile
- Flat mount hydraulic type
PRODUCT SPECIFICATIONS
| MODEL NO | BR-R8070-R |
|---|---|
| SERIES | ULTEGRA R8000 Series |
| Color | Series color |
| Average weight | 138 ( /pc) |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|---|
| Brake hose color (kit) | Black |
| Brake hose (Kit) | SM-BH90-JK-SSR, SM-BH90-J-SSR |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt_Anti loosen method | Bolt fix pin |
| Caliper fixing bolt_Tool size | 4 mm |
| Fixing bolt Spec for rear mount_10 mm mount | ✔ |
| Fixing bolt Spec for rear mount_15 mm mount | ✔ |
| Fixing bolt Spec for rear mount_20 mm mount | ✔ |
| Fixing bolt Spec for rear mount_25 mm mount | ✔ |
| Fixing bolt Spec for rear mount_30 mm mount | ✔ |
| Fixing bolt Spec for rear mount_35 mm mount | ✔ |
| Hose joint | Straight |
| Mount type | Flat mount |
| Oil | SHIMANO Mineral |
| ONE WAY BLEEDING | ✔ |
| Pad_Option | K04S Metal | L04C Metal |
| Pad_Standard | K02S Resin, K03S Resin | L02A Resin, L03A Resin |
| Pad mount | Pad axle |
| Piston | 2 |
| Recommended brake lever | ST-R8070, ST-R8020 |
| Recommended disc brake rotor | SM-RT800 |
