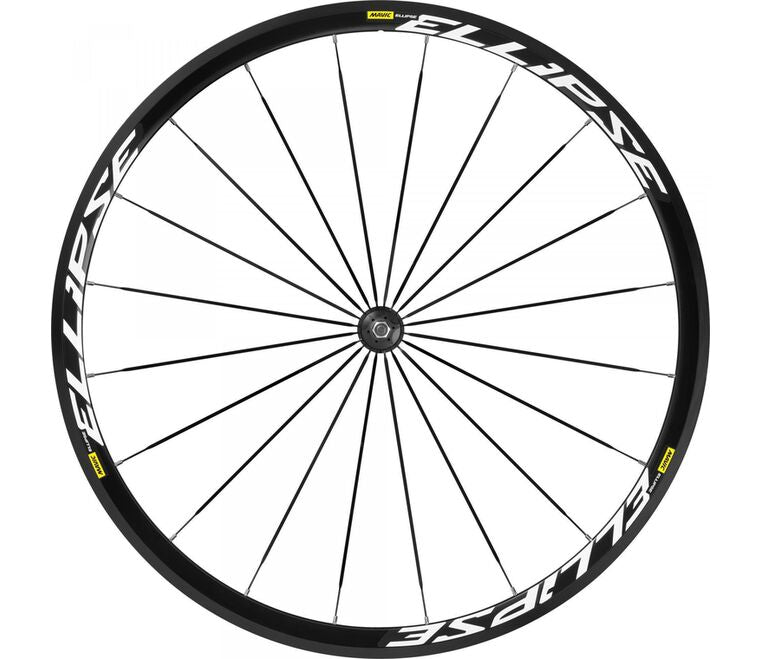

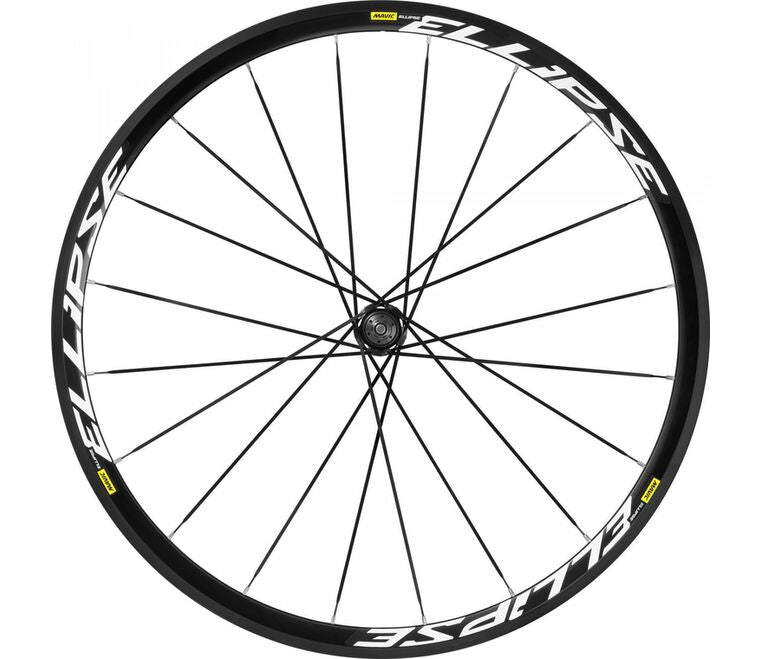

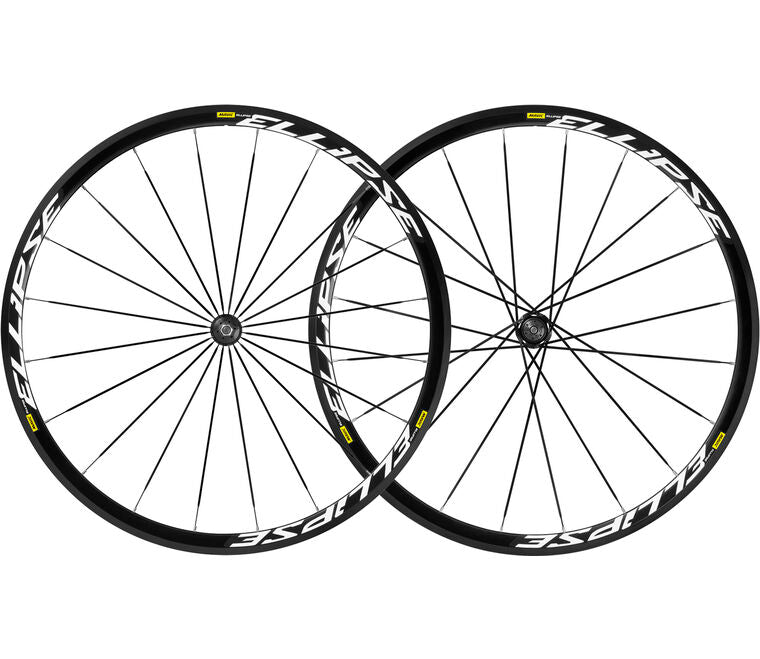

MAVIC WHEELSET ELLIPSE 700 ALLOY TRACK
Built on 30mm deep aluminum rims that are welded for superior strength, this track-racing wheelset delivers an aerodynamic advantage and proven reliability.
Versatile enough for everyday training and racing, the rims are designed for clincher tires. Wide-dish hubs produce maximum stiffness, and solid cartridge bearings laced with ultra-bladed straight-pull spokes form a rigid connection between the rim and hub.

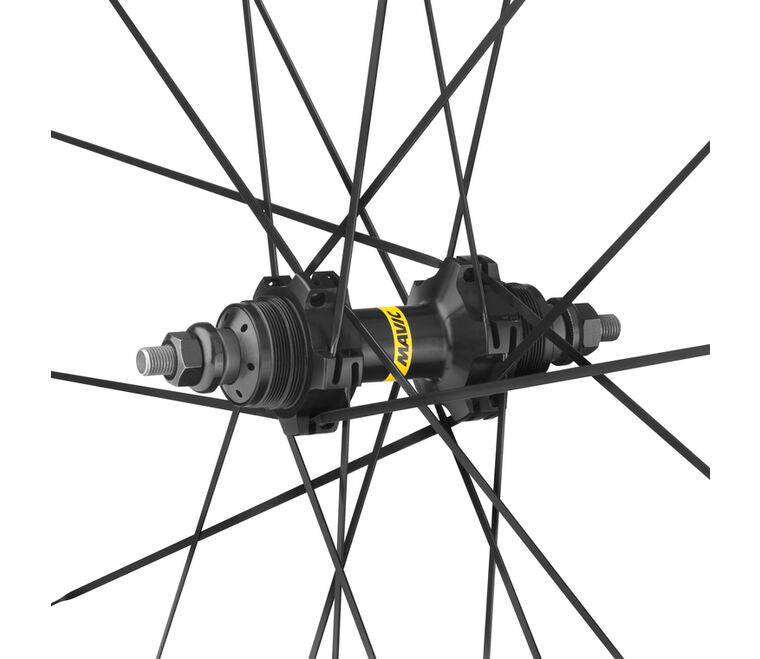

The rear hub has a double-sided thread so two cogs can be used on the same wheel, making gear changes fast and easy.
Versatile enough for everyday training and racing, the rims are designed for clincher tires. Wide-dish hubs produce maximum stiffness, and solid cartridge bearings laced with ultra-bladed straight-pull spokes form a rigid connection between the rim and hub.
The rear hub has a double-sided thread so two cogs can be used on the same wheel, making gear changes fast and easy.
SPECIFICATIONS

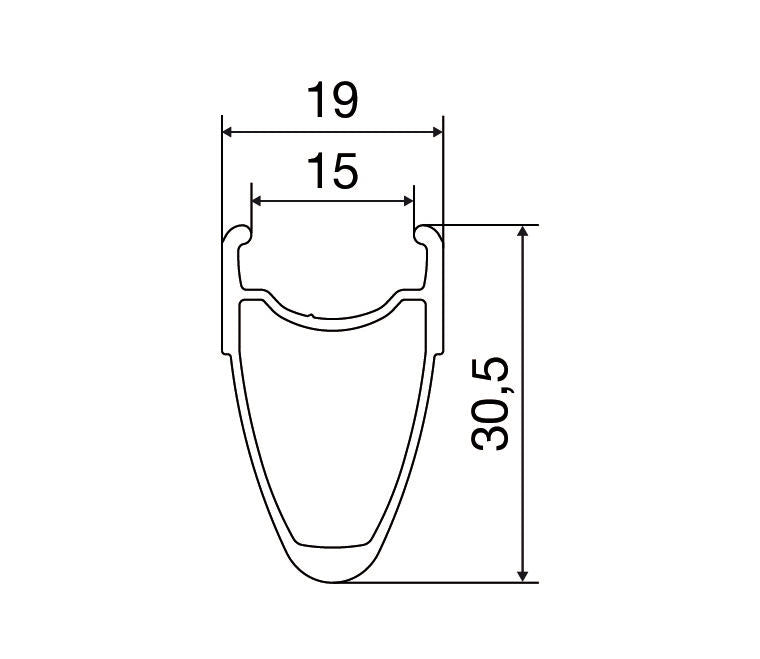

Rims
- Material: S6000 Aluminum
- Height: 30 mm
- Joint: SUP welding technology
- Drilling: traditional
- Valve hole diameter: 65 mm
- Tire: clincher
- Internal width: 15mm
- ETRTO size: 622x15C
Spokes
- Material: steel
- Shape: straight pull, flat
- Nipples: brass, ABS
- Nipples: steel, ABS
- Count: 20 front and rear
- Lacing: front radial, rear crossed 2

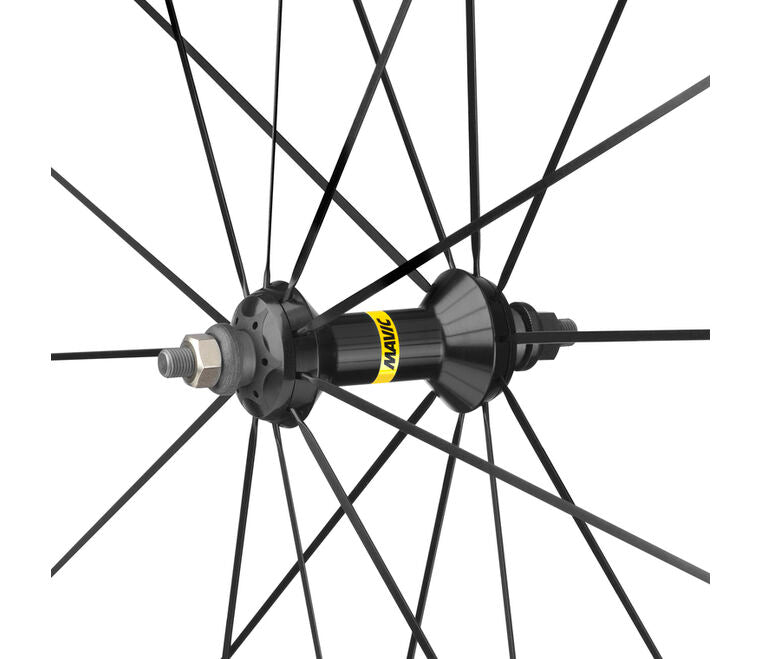

Hubs
- Front and rear bodies: aluminum
- Axle material: steel
- Fixed cog
- QRM+ bearing preload technology
Versions
- Color: Black only
Compatibility
- Freewheel: fixed cog only, flip-flop hub (one cog possible on each hub side) Cog thread: 1,37x24TPI Lock ring thread: left thread M33x1
- Front axle: for fixing nuts only (included), M9x1 thread
- Rear axle: for fixing nuts only (included), M9x1 thread

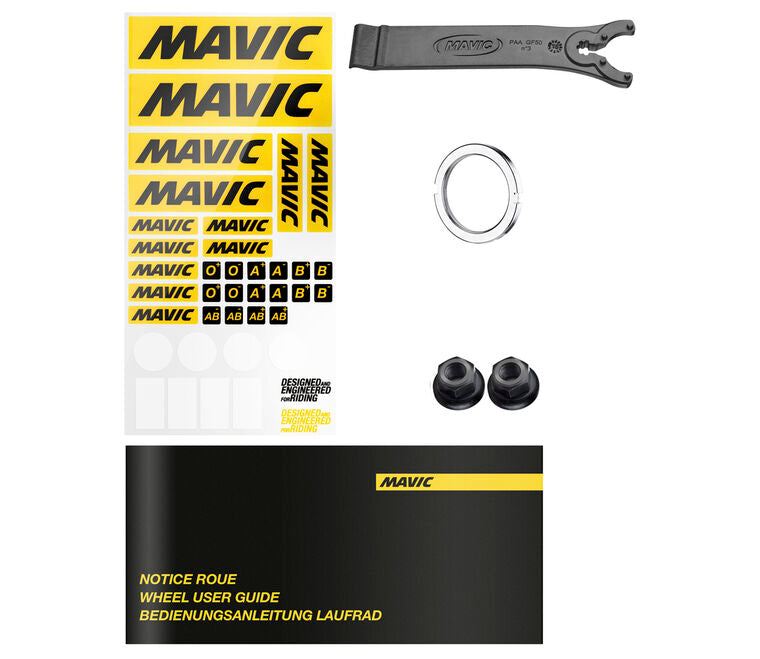

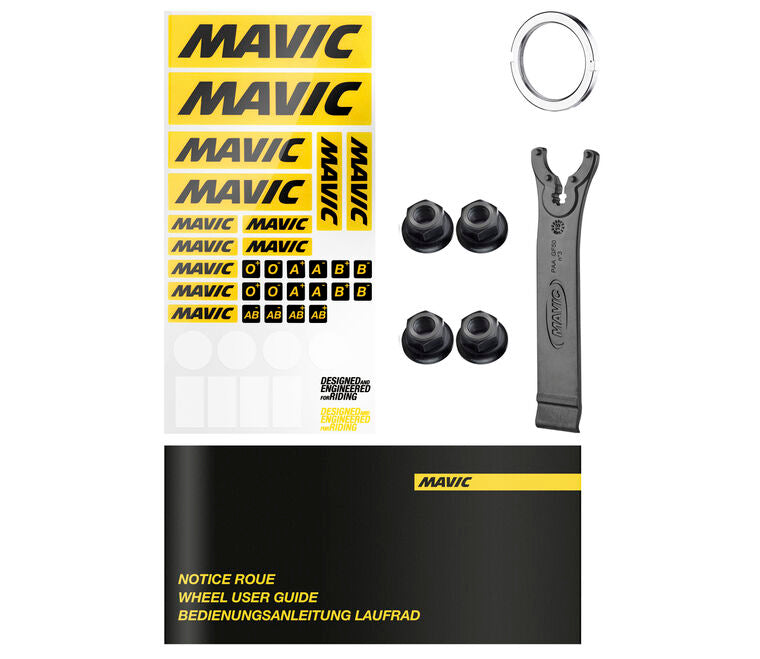

Delivered with
- Fixing nuts
- Rim tape
- Multifonction adjustment wrench (delivered with rear wheel)
- Cog lock nut
- User guide
Intended use
- For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
- Maximum tyre pressure: 84bar/121PSI with a 23mm tyre - 785bar/114PSI with a 32mm tyre
- Recommended tire sizes: 18 to 25 mm
- Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
- Minimum cog width : 75mm
Information on specified weight
- The weight of the wheels is announced at +/-5%, without lock-nut, nor rim tape (for the clincher wheels)
